Body Material: Aluminium, Carbon Steel, Stainless Steel
Size Range: DN40~DN300
Nominal Pressure: PN10, ASME B16.5 Class 150LB
Connection: Flange
Operation: Pneumatically actuated
Sleeve material: Natural rubber, EPDM, etc.
Application: Strong acid or alkali
Applicable Temperature: less than 60°C
Features
Pneumatically actuated closing devices for the automation industry. The compact and simple design which allows work in relatively restricted spaces guarantees high operational reliability and a long service life. These pinch valves do not require big control or drive structures, they can be used in many environment.

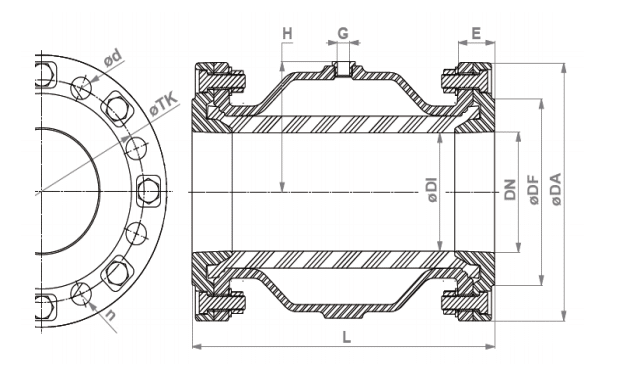

| DN (mm) | φDI (mm) | φDA (mm) | φDF (mm) | n | φd (mm) | φTK* (mm) | L (mm) | G (inch) | H (mm) | E (mm) | GW (kg) | Volume (L**) | PS Max(bar) |
| 40 | 40 | 150 | 88 | 4 | 18 | 110 | 155 | G 1/4” | 56 | 28 | 2.9 | 0.2 | 6 |
| 50 | 50 | 165 | 102 | 4 | 18 | 125 | 183 | G 1/4” | 65 | 30 | 3.7 | 0.3 | 6 |
| 65 | 65 | 185 | 122 | 4 | 18 | 145 | 183 | G 1/4” | 81 | 28 | 4.3 | 0.45 | 6 |
| 80 | 80 | 200 | 138 | 8 | 18 | 160 | 228 | G 1/4” | 95 | 31 | 5.6 | 0.95 | 6 |
| 100 | 100 | 220 | 158 | 8 | 18 | 180 | 280 | G 1/4” | 112 | 35 | 8.4 | 1.7 | 6 |
| 125 | 118 | 250 | 184 | 8 | 18 | 210 | 348 | G 1/4” | 136 | 40 | 12 | 3.5 | 6 |
| 150 | 145 | 285 | 212 | 8 | 22 | 240 | 418 | G 1/4” | 160 | 43 | 17 | 7 | 6 |
| 200 | 190 | 340 | 268 | 8 | 22 | 295 | 558 | G 3/8” | 206 | 60 | 35 | 15.5 | 4 |
| 250 | 250 | 395 | 320 | 12 | 22 | 350 | 680 | G 1/2” | 266 | 67 | 56 | 30 | 3 |
| 300 | 300 | 445 | 370 | 12 | 22 | 400 | 820 | G 1/2” | 306 | 70 | 86 | 49 | 3 |
